No.

Item

Specifications and Technical Description

Qty

A

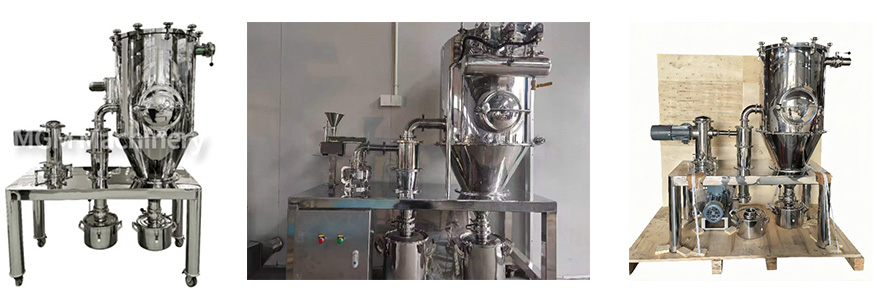

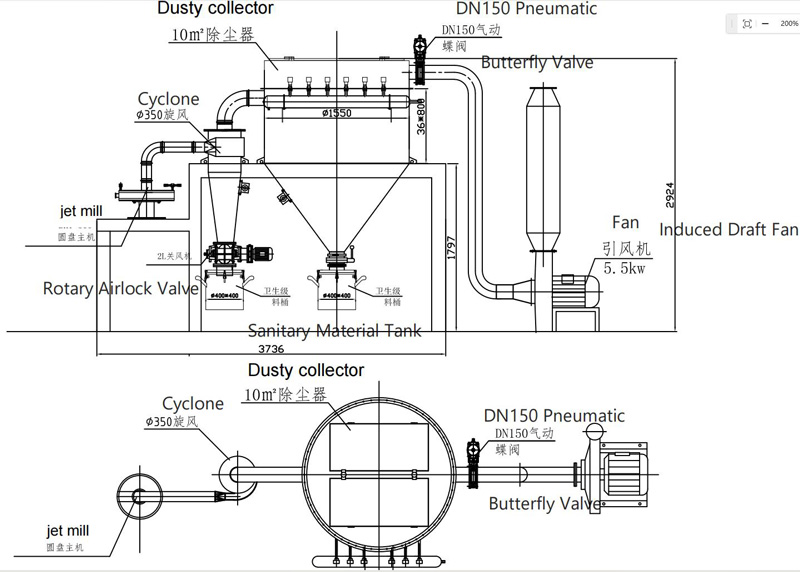

Crushing Main Unit

1. Model: GMP standard.（customized）
2. Bucket feeding, plate thickness: 8mm.
3. Material: Contact parts 316L stainless steel.
4. Explosion-proof motor: 12000 rpm, voltage 380V/50Hz.
5. Finish: Internal and external fine polishing.
6. Fineness: Adjustable 2-50μm.
7. Design capacity: 15-120 kg/h.
8. Power: 2.2 kW (motor housing included).

1

B

Cyclone Separator

1. Model: φ350.
2. Material: Contact parts 316L stainless steel.
3. Plate thickness: 3mm.
4. Finish: Internal and external bright.
5. Equipped with vibrator to prevent bridging.

1

C

Pulse Dust Collector

1. Model: 13.5㎡, explosion-proof pulse valve.
2. Filter bag material: Anti-static PTFE membrane, needle felt.
3. Material: Contact parts 316L stainless steel.
4. Finish: Fine polished exterior.
5. Number of bags: 36.
6. Bag specification: φ125×1000.
7. Dust collection efficiency: 99.99%.
8. Connecting pipe: 219.
9. Equipped with explosion venting panel and vibrator.
10. Thickness: 3mm.

1

D

Rotary Valve (Air Lock)

1. Model: 6L.
2. Power: 1.1 kW, 380V.
3. Material: Contact parts 316L stainless steel.
4. Finish: Bright.
5. Explosion-proof motor.

2

E

High-Pressure Induced Draft Fan

1. Model: 8-09, 7.1D.
2. Power: 7.5 kW, 380V.
3. Total pressure: 11347 Pa.
4. Flow rate: 1215 m³/h.
5. Fitted with silencer.
6. Standard motor.

1

F

PLC Electrical Control Cabinet

1. Includes controls for mixer, rotary valve, draft fan, main unit, etc.
2. Inverter brand: Siemens.
3. MCGS 10-inch true color display screen.
4. Manual/automatic integrated operation, one on-site explosion-proof cabinet.
5. Main electrical components: Schneider. Reserved 485 interface for DCS.

1

G

Piping System

1. Material conveying pipelines use 316L stainless steel, clamp quick-connect or flange connection (from main unit to cyclone, to dust collector).
2. Total pipe length shall be within the drawing confirmed by both parties.

1 set

H

Pneumatic Butterfly Valve

1. Model: DN159.
2. Wafer type.
3. Material: Stainless steel.

1

I

Steel Platform

1. Material: 304 stainless steel.
2. Dimensions: According to design drawing.

1
