Overview

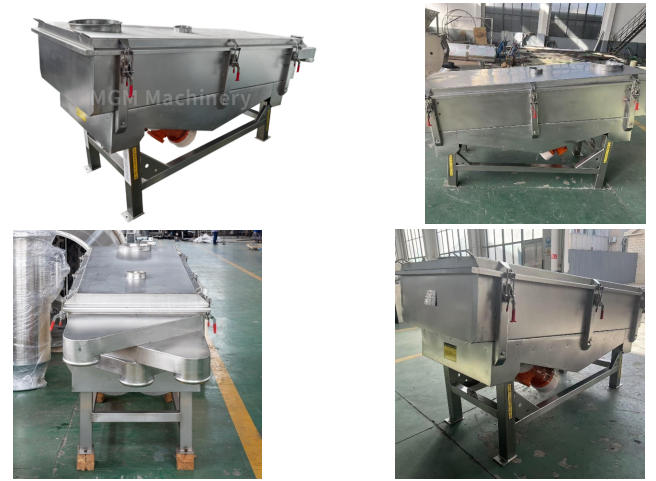

This machine is composed of three major components: the inlet and outlet screen box, the vibration source, and the shock absorber. The machine base is connected to the screen box with 4-6 sets of soft rubber shock absorbers fixed up and down. When turned on, centrifugal force is generated, and the amplitude is controlled by eccentric blocks and shock absorbers to achieve the required working performance, allowing the material to undergo a shaking and loosening screening process. Widely suitable for screening in industries such as pharmaceuticals, food, chemicals, metallurgy, electronics, etc.



Technical specifications

model	production capacity （kg/h）	meshes (mesh)	power (kw/h)	Vibration frequency (r/min)	excitation force (kN)	Upper exit height	Middle outlet height	Lower exit height	Overall dimensions (L×W×H)	net weight (kg)
FS-0.5M2-X	450	2-150	0.2×2	1400	0-2.5×2	800	680	500	1300×770 ×1060	220
FS-0.7M2-X	650	2-150	0.2×2	1400	0-2.5×2	850	750	530	1700×680 ×1100	280
FS-0.8M2-X	750	2-150	0.2×2	1400	0-2.5×2	850	750	530	1600×830 ×1150	320
FS-1.2M2-X	1100	2-150	0.2×2	960	0-5×2	880	760	520	1900×980 ×1220	450
