Automatic Granule Bags 100--3000 grams Filling Line

1.Performance parameters:

Bag size	long 150 - 500 mm
	Width 150 - 350 mm
Film width	320 - 720mm
Applicable packaging film material	OPP / PE, PVC, OPP/ CPP, PT /PE, KOP/CPP, VMCPP
Packing weight range	100gr-3000gr.
Packaging speed range	5-50 bags/minute depending on the material conditions
Packaging speed	10-40 bags/minute
Power supply type	220V 50Hz ( or 60Hz)
Compressed air	6-8Kg/m2,0.15m3/ min
Power consumption	4 KW

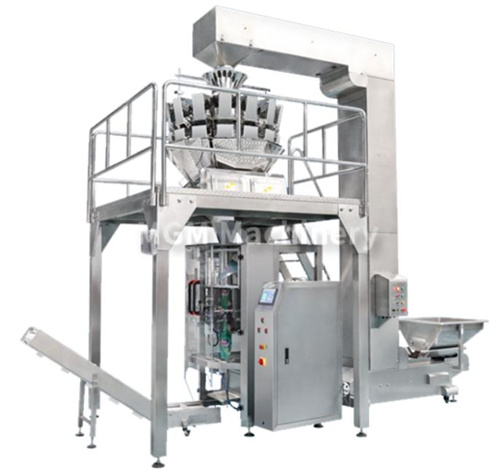

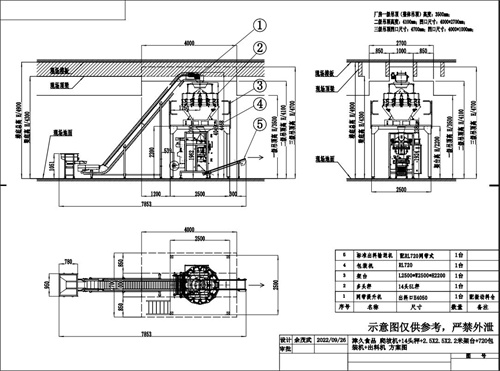

2. Automatic quantitative packaging equipment

(pictures are for reference only, the actual product shall prevail)

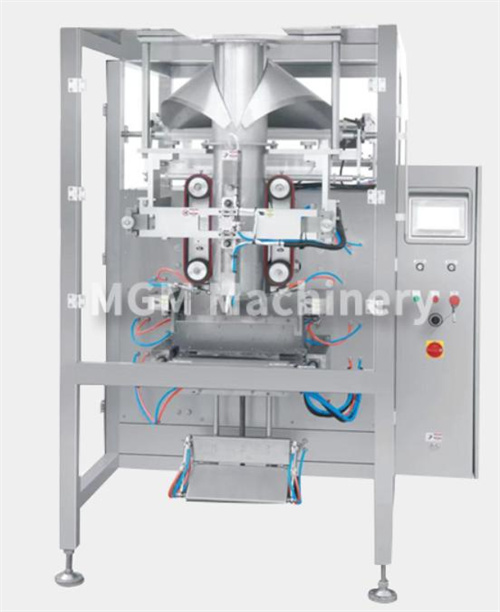

①Packaging machine host



The pictures are for reference only, please refer to the actual product Equipment features:
1.Equipped with safety protection to meet the enterprise safety management requirements.
2.Adopt intelligent temperature controller, accurate temperature control, ensuring beautiful and smooth sealing.
3.The PLC servo system, pneumatic control system and ultra-large display touch screen are used to form the drive control core, which maximizes the control accuracy, reliability and intelligence of the whole machine.
4.This machine and metering configuration can automatically complete the entire packaging process of metering, feeding, filling and bagging, date printing, inflation (exhaust), and finished product transportation, and automatically complete counting.
5.The touch screen can store packaging process parameters for a variety of different products, which can be used at any time without resetting when changing products.
There is a fault display system to help troubleshoot the problem in a timely manner.

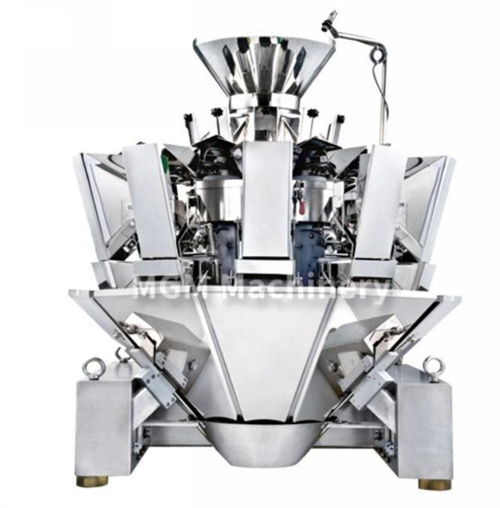

②tMulti-angle combination scale

1.Adopt high-precision, high-standard special sensors, with a resolution of 1 decimal place
2.Factory parameter setting recovery function, supporting multi-stage weight calibration;
3.It can automatically pause when there is a lack of material, making the weighing more stable;
4.Storing 100 sets of parameter settings to meet various material requirements, with help menu for easy learning and use;
5.During operation, the amplitude of each line can be adjusted independently to make the feeding more uniform;
6.Multiple languages are available, easy to operate, suitable for the global market;
7.A new multi-angle hopper is added, and an adjustable gate is added to each outlet to effectively distribute the materials to the vibration plates of each line;
8.Specially designed deep U-shaped vibration plate to prevent materials from leaking to both sides of the vibration plate;
9.Unified design standards and mold manufacturing technology make the interchangeability of various parts stronger.
10.Optional weighing material detection to accurately control the feeding time and material thickness to ensure weighing accuracy;
11.The thickened cast aluminum center seat enhances the strength of the machine and shortens the weighing stabilization time;

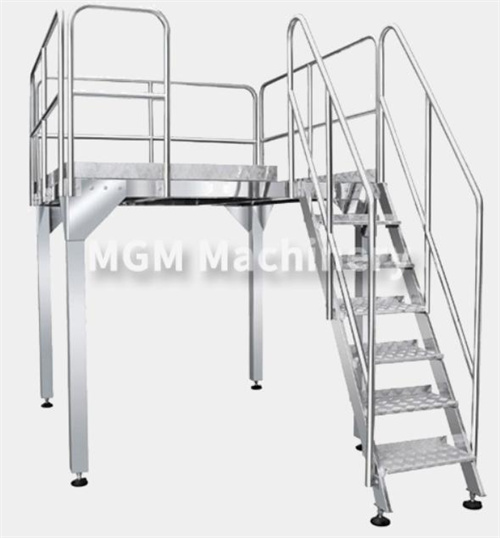

③Platform





④Hoist

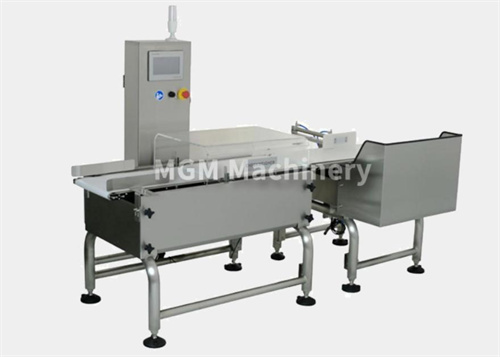

⑤Weight Checker

The EW series weight sorter is specially designed for high-precision requirements, high stability, and intelligent detection technology for package weight, and has core invention patents. It uses imported famous brand components and integrated circuits, adopts high-precision CNC structure design, and cooperates with patented weighing algorithms and other advanced technologies to achieve industry-leading detection performance.

1. German HBM original gravity sensor
2. Danfoss inverter from Denmark
3. Japan Omron Photo electric switch
4. Japanese NTN original bearings
5. Japanese Bando timingbelt
6. Schneider Electric Components
7. AirTac Pneumatic Components
8. 7-inch industrial touchscreen
9. All stainless steel 304rack



3.Packaging machine configuration table

Content

PLC controller ( Siemens ) including wiring

Touch screen ( Siemens )

Servo motor ( Siemens )

Servo drive ( Siemens )

Thermostat ( OMRON )

Solid State Relay (Schneider)

Circuit breaker ( Siemens )

Paper feeding motor (Beijing Weitewei)

Color code electric eye ( Baideli )

Longitudinal sealed cylinder ( Festo )

Horizontal seal standard cylinder ( Festo )

Servo propulsion standard cylinder ( Festo )

Cutter thin cylinder ( Festo )

Solenoid valve ( Festo )

Paper pulling synchronous belt (own brand)

Bag Maker (All Stainless Steel, Aluminum Alloy)
